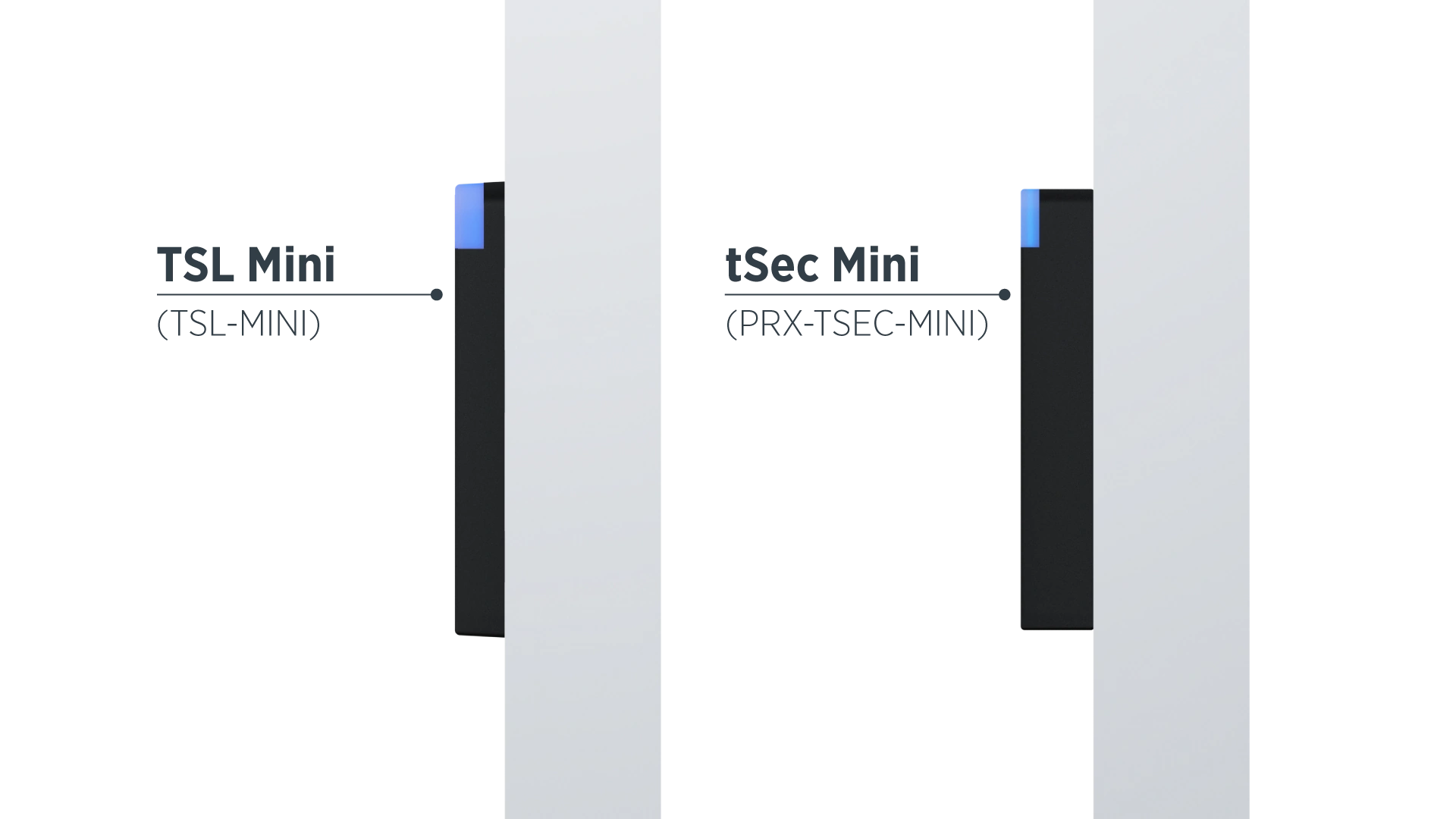

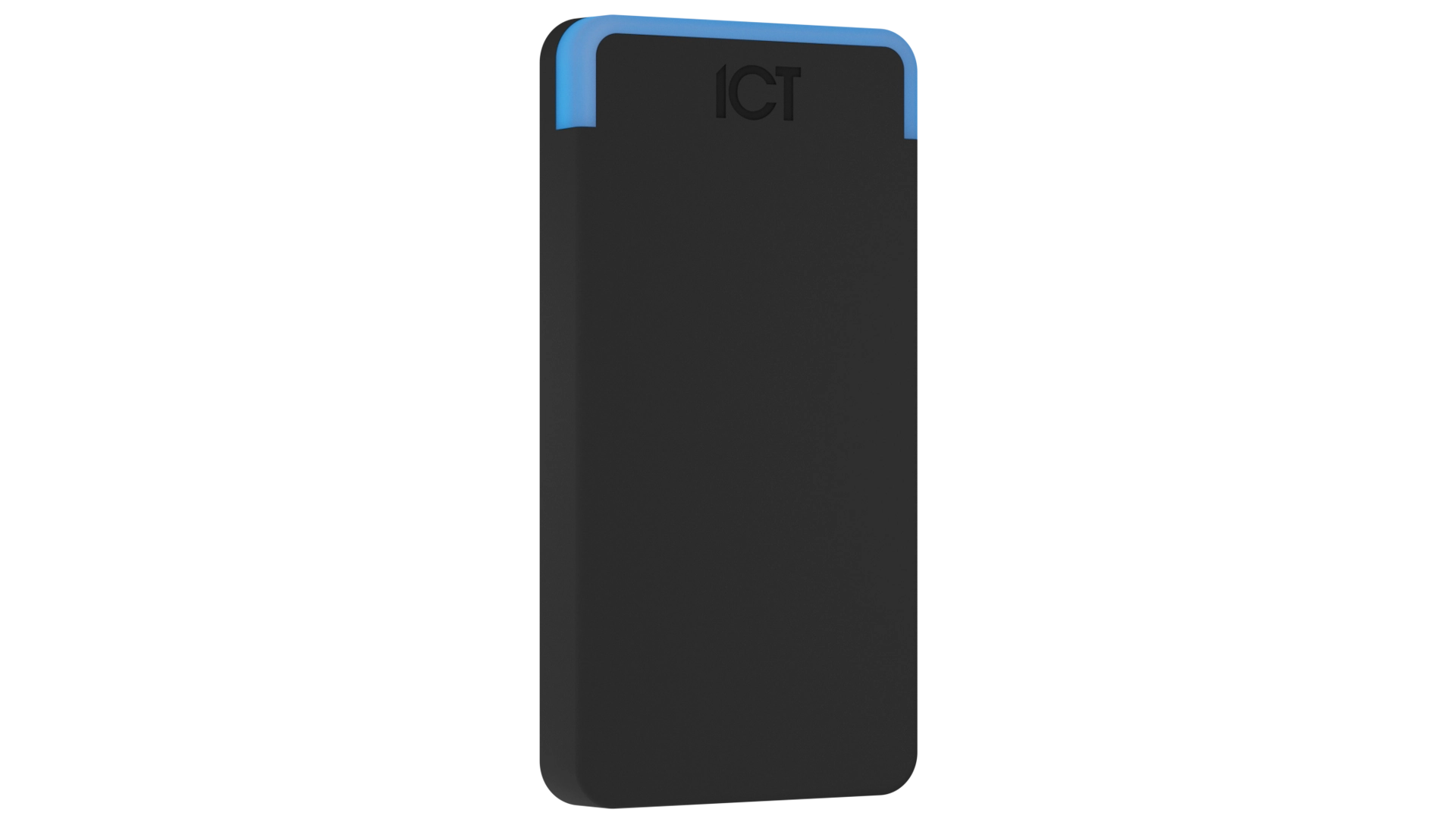

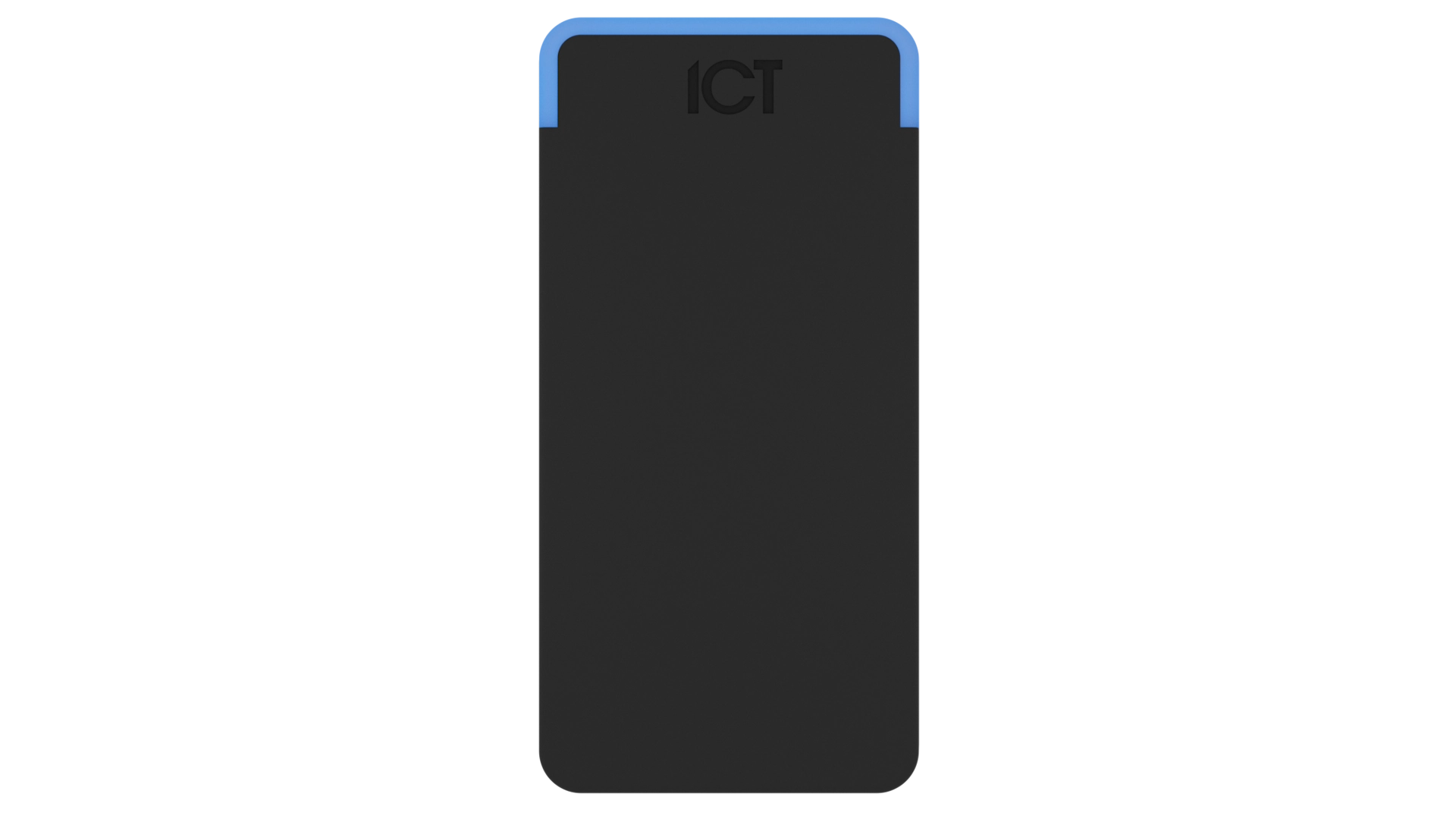

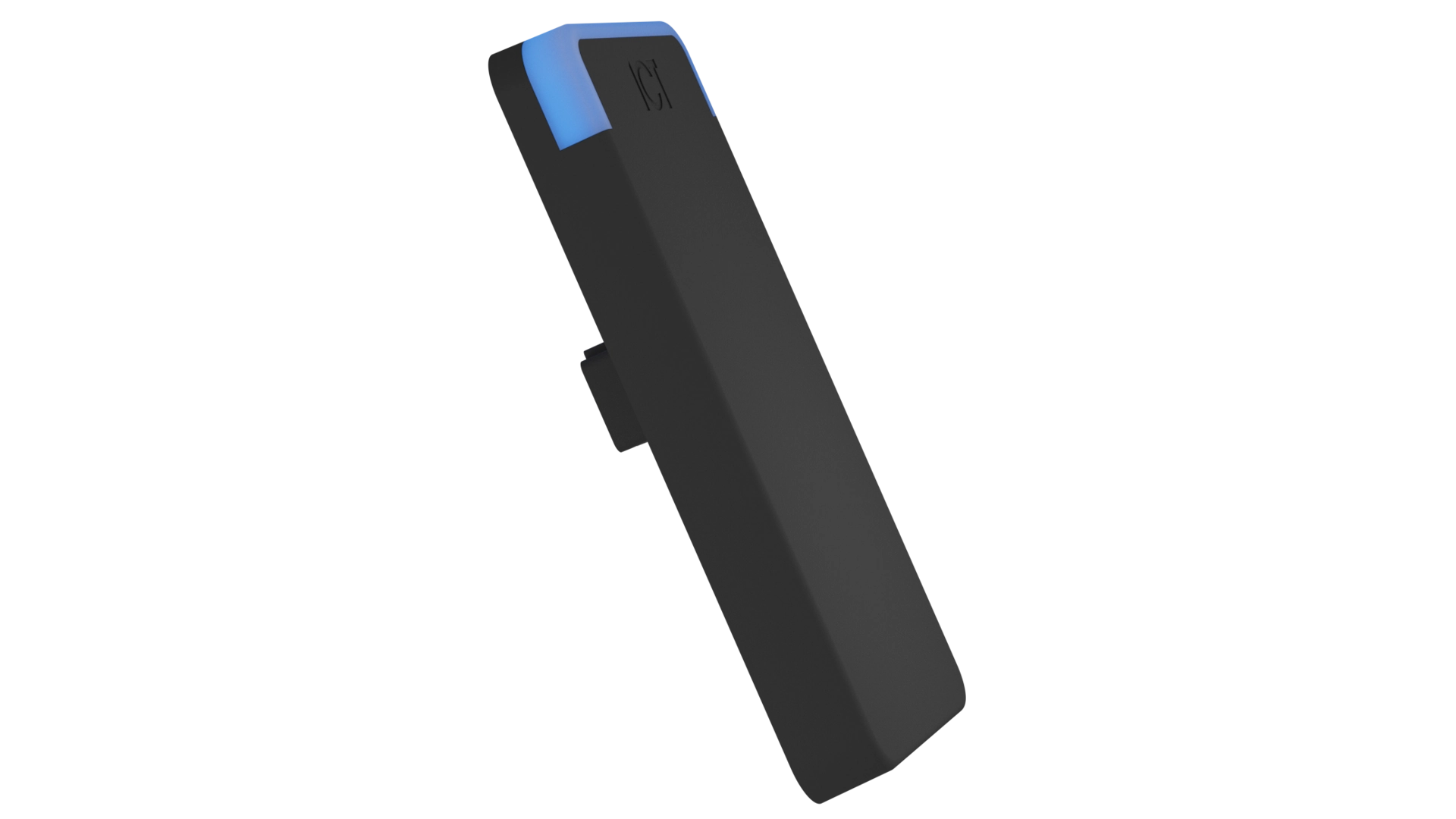

TSL Mini
RFID Card Reader

A range of optional features means there is a model to suit everyone.

• Choose from 13.56MHz MIFARE/DESFire or a multi technology reader that combines both 125kHz proximity and 13.56MHz formats in a single unit
• Opt for either black or white according to your decor

TSL readers can read a range of different card types:

• 13.56MHz smart cards (MIFARE and DESFire)
• 125kHz low frequency cards, including native PSK (phase-shift keying) and G-Prox II support

The multi technology reader combines both capabilities in a single unit, delivering a migration pathway for sites to transition from older cards to the latest technology. This is ideal for organizations which don't want to replace all of their existing cards at once.

Bluetooth / NFC capability enables you to use your smartphone as your access credential for maximum convenience. Equipped with support for most modern iOS and Android devices, you can unlock the door using a unique access credential that is entered against your user record in Protege, and authenticated by a secure cloud based server.

The TSL reader protects its encrypted communications with a Secure Access Module (SAM), a dedicated cryptographic chip. The SAM is a 'black box' which stores all encryption keys and handles encryption and decryption processes whenever the reader communicates with credentials or other hardware.

Using an isolated chip provides the highest possible level of security for private encryption keys, making it much more difficult for attackers to access them.

The TSL reader uses signature verification to confirm the authenticity of firmware updates, ensuring that only firmware files from a trusted source will be accepted.

TSL readers offer multiple communication protocols for maximum installation flexibility:

• The industry-standard OSDP 2.2 protocol provides the best security and compatibility with Protege and third-party systems. Using secure channel communications, each reader is paired with the controller or reader expander with a unique AES-128 bit encryption key. RS-485 wiring is easier to deploy, more cost-effective and allows for longer cable runs than traditional Wiegand wiring.
• ICT RS-485 configuration provides fast, flexible and encrypted communication with Protege systems.
• Wiegand wiring is ideal for compatibility with all standard access control systems.

The card reader provides the ability to change the color of the LED strip (16 colors available) to show when a function has started, succeeded or failed. For example, for a function that is used to arm an area you might set the LED to change to orange to show that the function has started, yellow to show that the area has armed successfully, and red to indicate when the function has failed.

*This feature is only supported when wired using RS-485.

Reader configuration can be easily programmed for a wide range of functionality from any mobile device via the Protege Config App.

TSL readers form an essential component of the ICT offline wireless locking system. In this system, all programming, access data and events are carried on user cards and mobile devices. TSL readers at key locations in the building act as update points, updating access data and retrieving events whenever a user badges their credential.

The IP65 environmental rating provides a high degree of protection from the elements, making the reader suitable for harsh environments. Readers can be mounted indoors or outdoors, located anywhere from the car park gate to the office door.

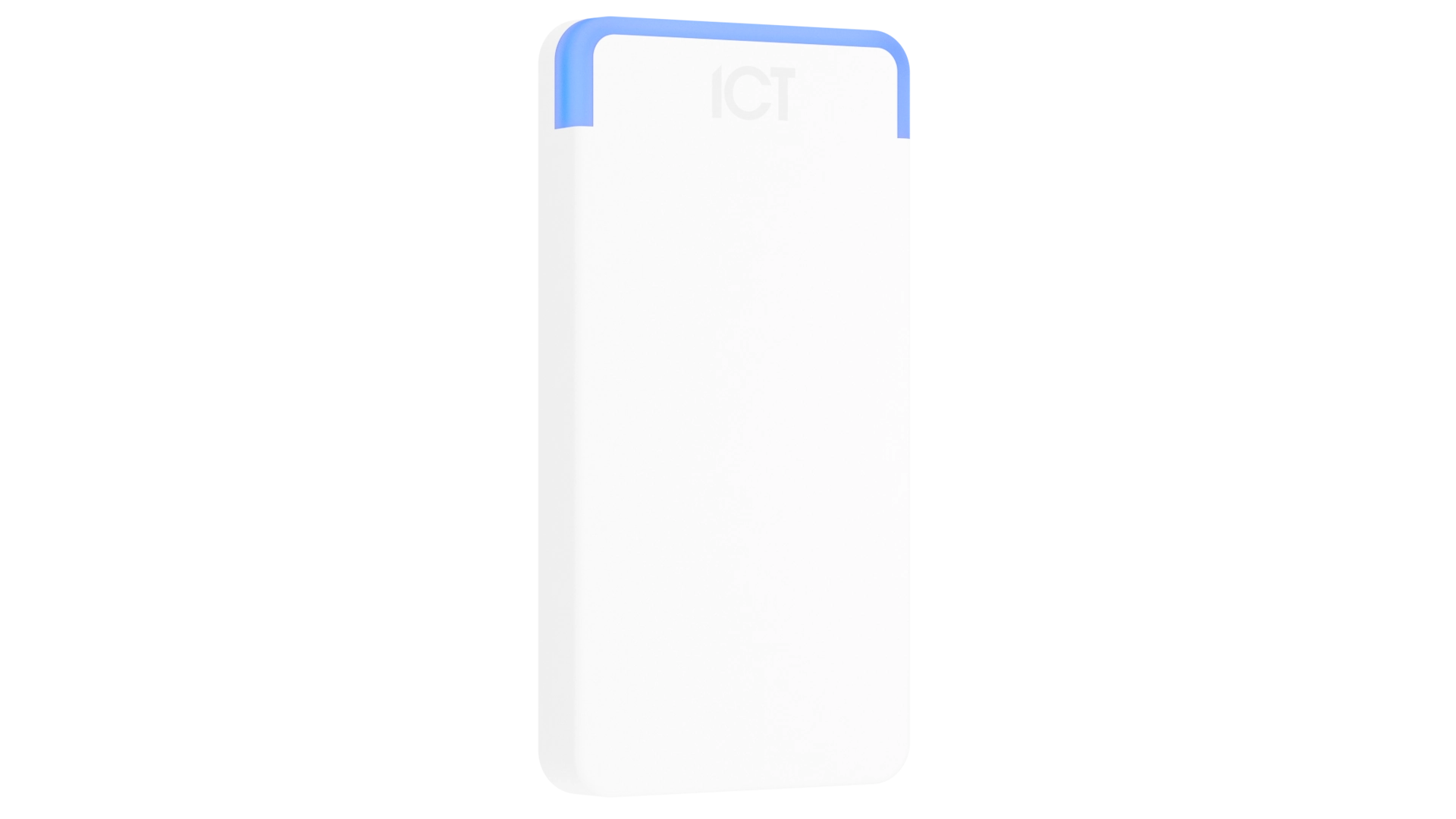

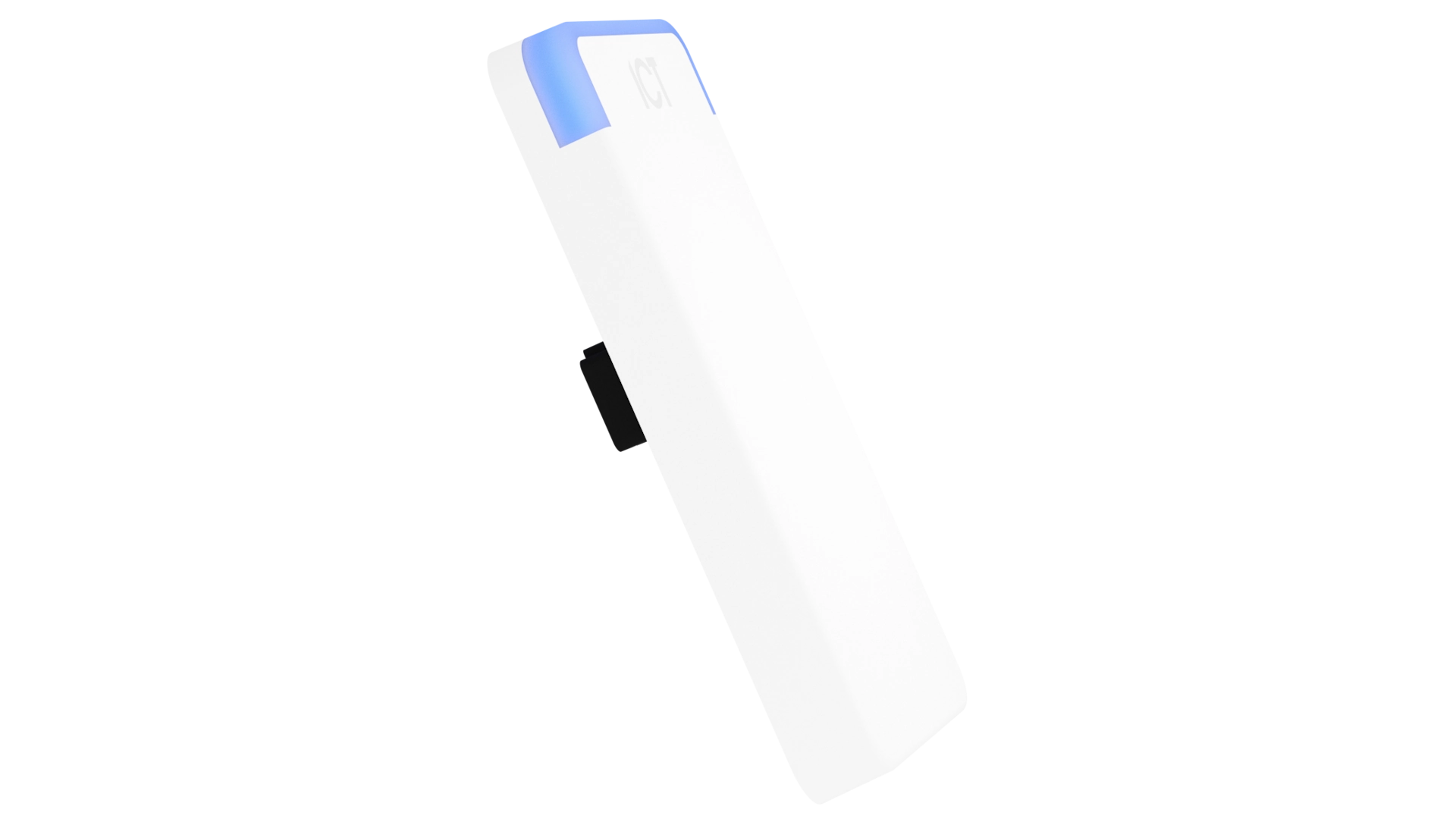

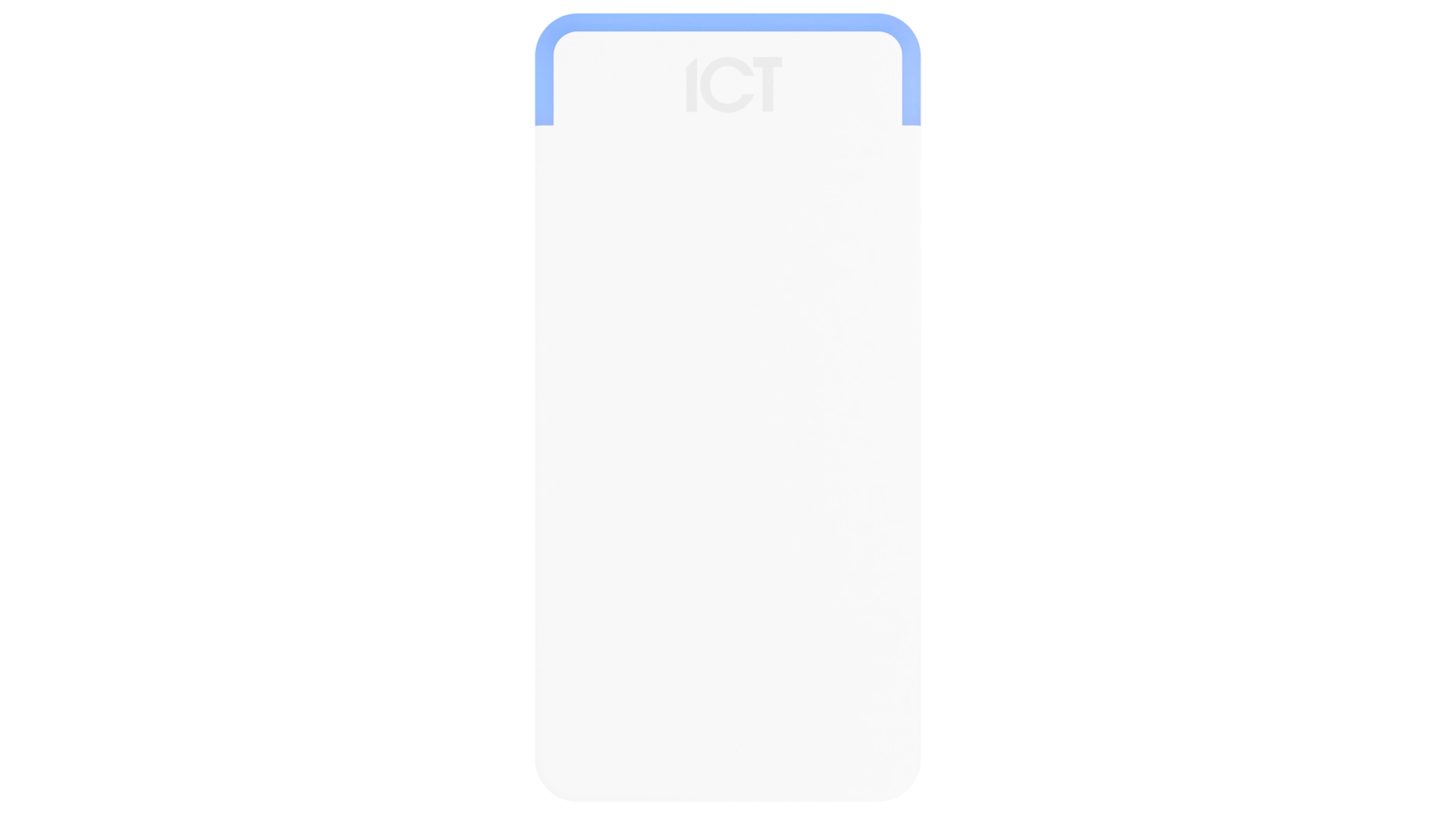

All TSL readers are shipped with a black faceplate. To switch to a white reader simply order a white faceplate.

Whether you're looking for a color change or need to replace a damaged cover, replacement white and black faceplates are available to suit all TSL reader sizes and configurations.

Ordering Codes:

• TSL Mini Reader Faceplate (Black): TSL-FP-MINI-B
• TSL Mini Reader Faceplate (White): TSL-FP-MINI-W

TSL readers use a shielded 8-wire pigtail wiring loom with a Hirose socket plug for connection to the reader. A standard 34cm cable is supplied with the reader. Additional 34cm or 3.5m cables can be ordered separately.

Ordering Codes:

• Standard 34cm TSL Reader Pigtail Cable: TSL-CABLE-34CM
• 3.5m TSL Reader Pigtail Cable: TSL-CABLE-3.5M

The 3.5m pigtail cable is not compliant for UL/cUL installations.

A ferrite shield, also known as a noise suppression sheet, is designed to reduce electromagnetic interference and may help to improve read range for readers mounted on a metal surface. The shield is placed between the reader and the mounting surface to suppress interference caused by the reader's proximity to the metal surface.

All Mini readers come with a ferrite shield fitted.

The effectiveness of using a ferrite shield to improve read range is determined by many factors, including the mounting surface material and installation environment, and may not necessarily produce the desired result. Testing should be performed to assess effectiveness before planning installation of multiple readers.

ICT recommends using a surface mount box as the preferred solution for interference caused by metal mounting surfaces. A surface mount box is generally more effective at reducing interference and improving read range as it distances the reader from direct contact with the mounting surface, breaking the 'path of transfer'.
