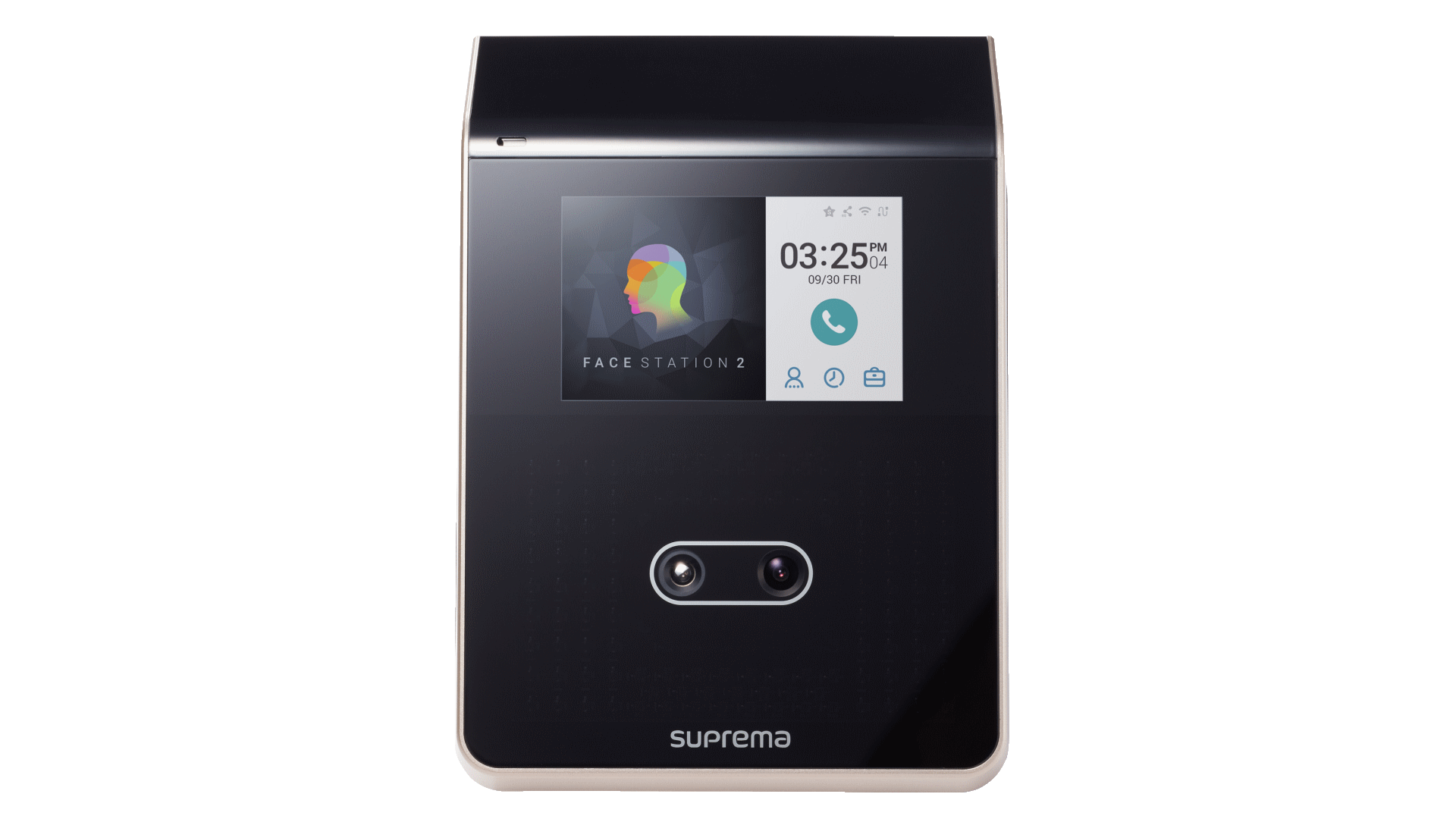

Suprema
FaceStation 2
FS2-D
Powered by Suprema’s latest facial recognition algorithm and a 1.4GHz quad-core CPU, the FaceStation 2 offers unrivalled matching speed, accuracy and level of security. Patented IR illumination and optical technology adapts to the environment, enabling accurate authentication regardless of lighting conditions - whether it’s midday or midnight.
- Matching speed: 1:3,000 match/sec
- Group Matching: 1:5,000 match/sec
- User Capacity: Max 30,000 users (1:1), 3,000 users (1:N)
- Operating illuminance from 0 lx to 25,000 lx
- Live face detection prevents spoofing by printed images and LCDs
- Multi RFID card reading with LF and HF dual-band support
Features
Ultra Performance
The FaceStation 2 delivers industry-leading matching speed of 1:3,000 matches per second, with group matching reaching 1:5,000 matches per second. With a maximum user capacity of 30,000 users in 1:1 mode and 3,000 users in 1:N mode, it is built for high-traffic environments.
Highest Operating Illuminance
With an operating illuminance range from 0 lx to 25,000 lx, the FaceStation 2 offers the highest operating illuminance available. This covers complete darkness to all indoor lighting conditions, ensuring reliable authentication in any environment.
Enhanced Security
IR-based image analysis provides live face detection to prevent spoofing by printed images and LCDs. Enhanced security is provided by the Android 5.0 Lollipop platform, along with high quality image logging for audit purposes.
Multi RFID Card Reading
The FaceStation 2 supports LF (125kHz) and HF (13.56MHz) dual-band card reading, supporting all card types that HID multiCLASS supports including EM, HID Prox, MIFARE, iCLASS, DESFire, FeliCa, and NFC.
Ergonomics and User Convenience
An extended height range of 145cm to 210cm accommodates users of all heights, with a tilt-type bracket available for wheelchaired persons and children. The Android 5.0 Lollipop based intuitive GUI and improved face enrolment procedure provide a seamless user experience.
Specifications
| Ordering Information | |
| Ordering Code | FS2-D |
| Biometrics | |
| Biometric | Face |
| Image Dimension | 720 x 480 pixels |
| Live Face Detection | Supported |
| Max. User | 30,000 (1:1) 3,000 (1:N) |
| Max. Log | 5,000,000 (text) 50,000 (image) |
| RF Card | |
| RF Option | 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC |
| RF Read Range | MIFARE/DESFire/iCLASS: 50mm, EM/HID PROX/FeliCa: 30mm, Bluetooth: 50mm |
| Hardware | |
| CPU | 1.4 GHz Quad Core |
| Memory | 8GB Flash + 1GB RAM |
| LCD Type | 4" color TFT LCD |
| LCD Resolution | 800 x 480 pixels |
| IR Led | 140 ea |
| Sound | 24 bit Voice DSP (echo cancellation) |
| Communications | |
| Wi-Fi | IEEE 802.11 b/g (FS2-AWB only) |
| Ethernet | Supported (10/100 Mbps, auto MDI/MDI-X) |
| RS-485 | 1ch Host or Slave (Selectable) |
| Wiegand | 1ch Input or Output (Selectable) |
| TTL Input | 2 Inputs |
| Relay | 1 Relay |
| USB | USB 2.0 (Host) |
| Tamper | Supported |
| Video Phone | SIP-based VoIP (Video + Voice) |
| Power | |
| Power | DC 24V 2.5 A |
| Environmental | |
| Operating Temperature | -20°C ~ 50°C |
| Operating Humidity | 0% ~ 80%, non-condensing |
| Physical | |
| Dimensions (W x H x D) | 141 x 164 x 125mm |
| Weight | Device: 548g, Bracket: 74g (including washer and bolt) |
| Certifications | |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, BT SIG |
