Protege Motorized Deadbolt
Wireless Lock
PRT-WL-DB
The Protege Motorized Deadbolt Wireless Lock combines an advanced-technology, intelligent wireless credential reader with leading automated deadbolt locking technology.
With no cabling necessary this provides sites with the ability to deploy integrated electronic access control in areas where traditional wired locking solutions may not be possible and online connectivity may be a barrier.
A simple self-contained design and robust motorized deadbolt operation provides the perfect economical security solution for doors which don’t require the aesthetics of customer-facing doors.
Wireless solutions offer unprecedented flexibility, and removing the need for teams of installers laying long runs of cabling and conduit throughout a site allows businesses to significantly reduce labor and materials costs.
- Native integrated electronic access control solution
- Grade 2 deadbolt lock meets ANSI lock standards
- Suitable for standard deadbolt installations
- Reversible handing
- Self-contained design with robust deadbolt operation
- Integrated LED indicator provides read response and status signaling
- Bluetooth® Wireless Technology
- DESFire credential reading
Features
Native Access Control
ICT wireless locks are a native component of your Protege system. No integration, middleware or third-party interface.
All configuration is performed within your existing Protege setup using standard door programming and utilizes existing records for users, credentials, access levels and other access control features. The solution truly is seamless.
Bluetooth® Mobile Credential Reading
Bluetooth® capability enables you to use your smartphone as your access credential for maximum convenience.
With the Protege Mobile App you can unlock the door using a unique access credential that is entered against your user record in the Protege system and authenticated by a secure cloud based server.
Secure with MIFARE DESFire
Based on the international standard ISO/IEC 14443 Type A, MIFARE DESFire represents the highest level of physical credential security.
- Fully compliant with the international standard ISO/IEC 14443 Type A
- Multi-application memory to store several services on the same card, allowing for many integration possibilities
- Fast transaction speed
- High security and fraud protection
Convenient Programming
Because offline locks are not actively connected to the network, in many systems they are extremely inconvenient to program. In contrast Protege wireless locks can be configured using the tool you already have in your pocket.
With the Protege Config App, you can simply badge your phone at an update reader to pick up the latest configuration, then send the updates to any lock within Bluetooth® range. The app will automatically update the lock firmware as well, saving you time and money.
Hardware Options

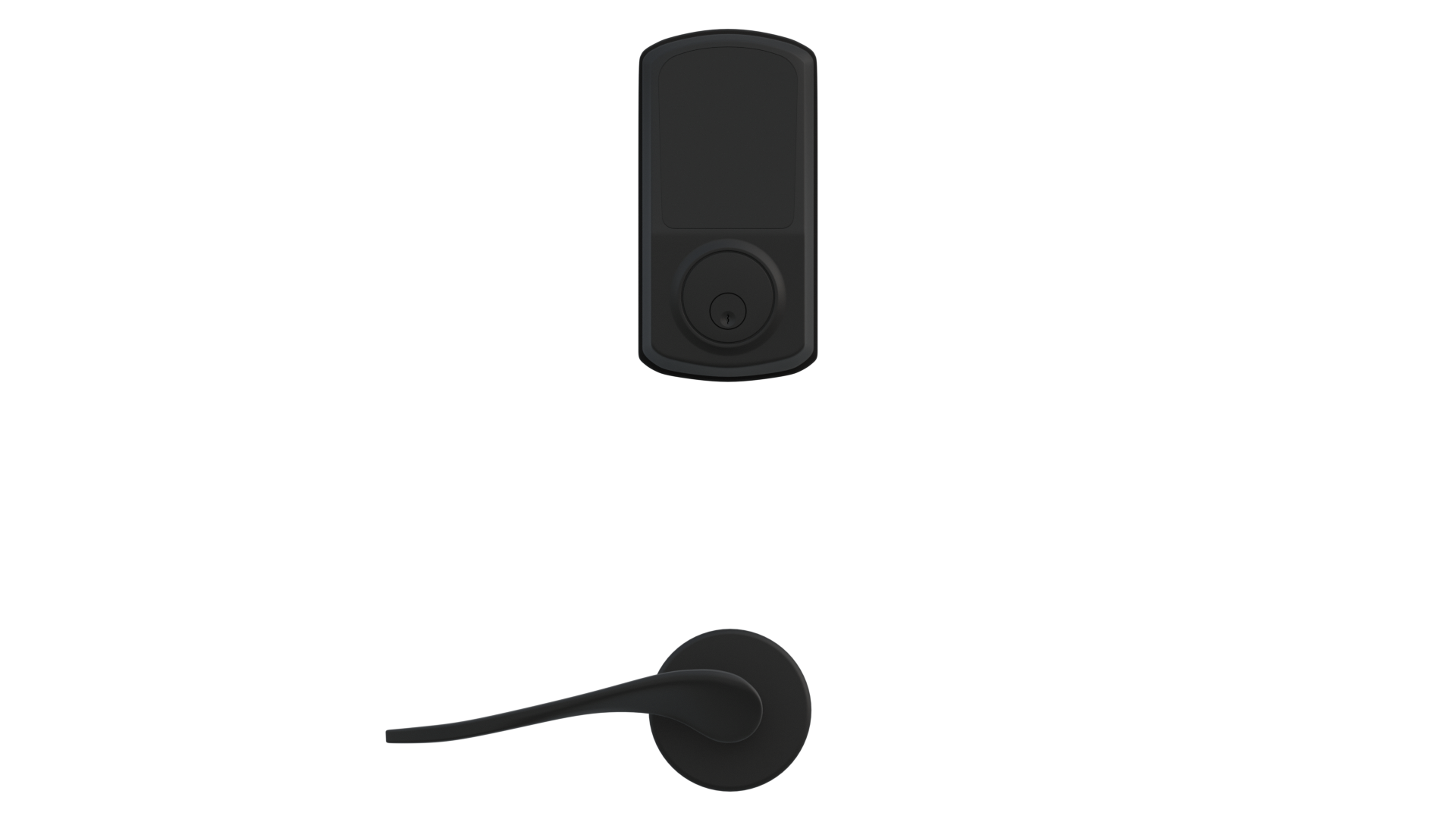

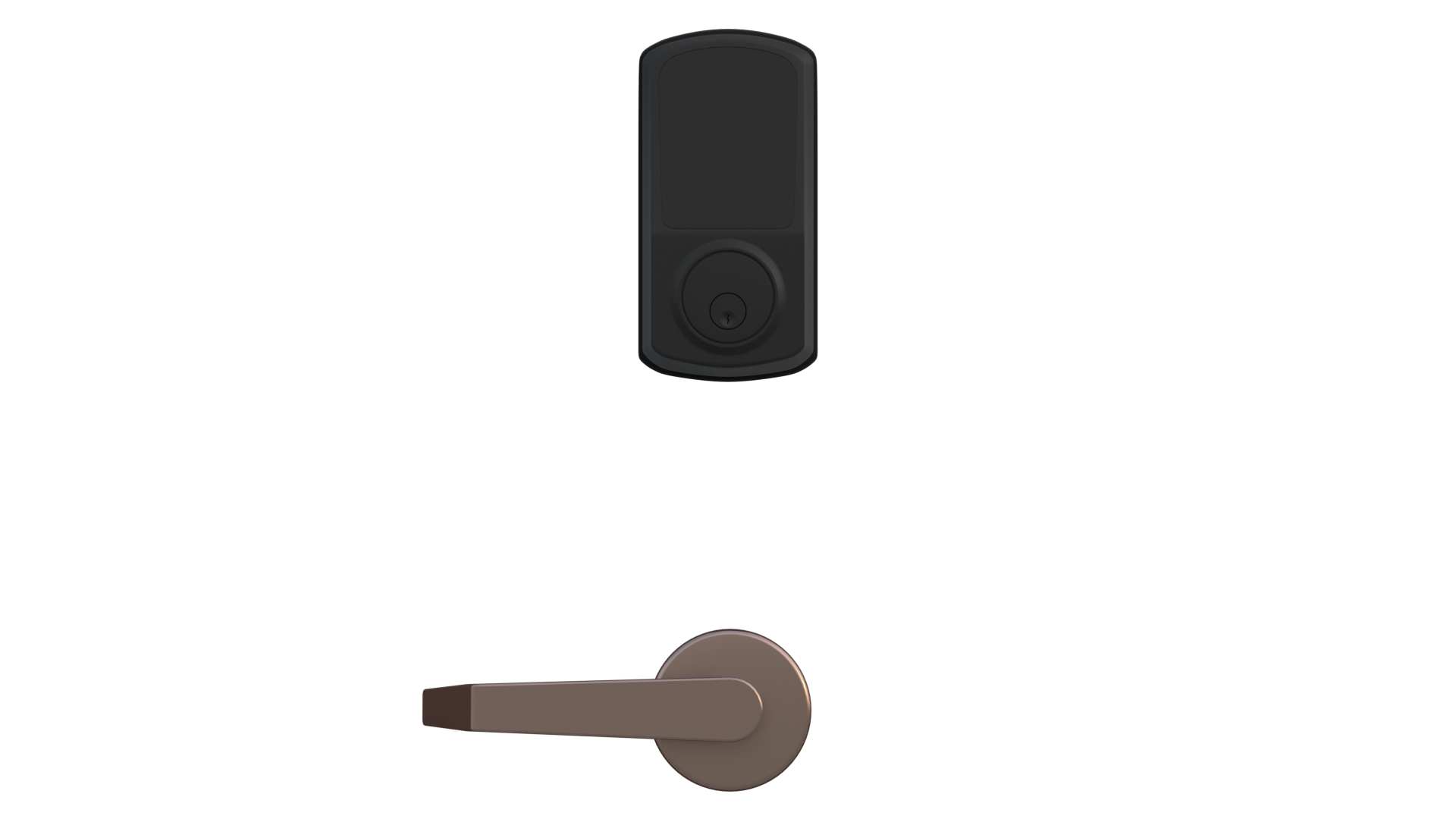

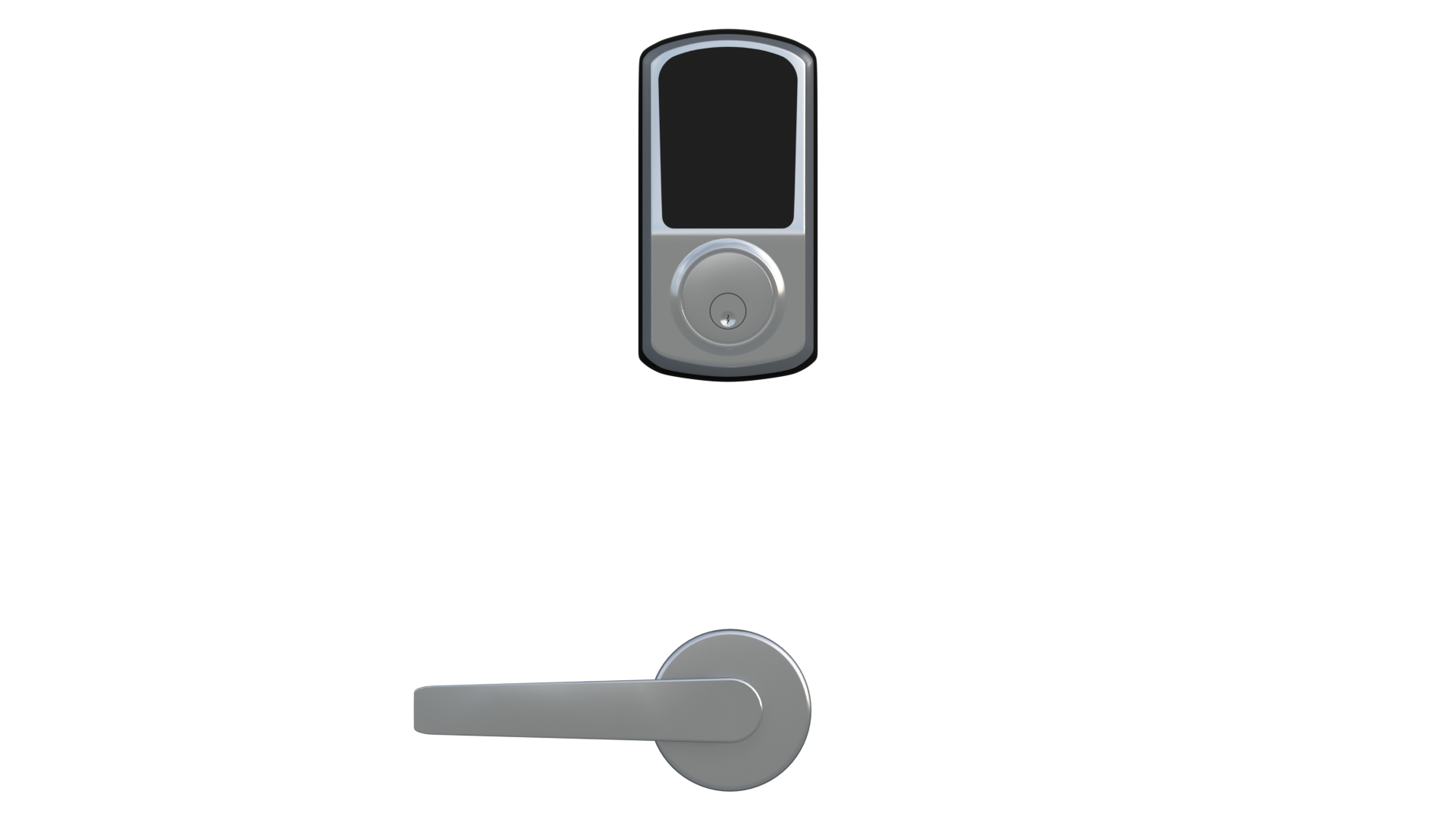

The Protege Motorized Deadbolt Wireless Lock is available in two color options.
Specifications
| Ordering Information | |
| Order Codes | Configure this lock in the ICT Protege Lock Selector to see every part code for your chosen finish, handle, and trim. |
| Power Supply | |
| Battery | Alkaline AA 1.5V (x4), UL/cUL Energizer MAX Alkaline |
| Expected Battery Life | Up to 1 year (10,000 activation cycles). Length of battery life not evaluated by UL |
| Operating Voltage | 6V |
| Operating Current | 900mA (Peak, Door Activation) |
| Average Operating Current | 82µA (Standby Mode) |
| Memory | |
| Event Memory Storage | 40,000 log entries |
| Communications | |
| Frequency | 13.56 MHz ISO/IEC 14443 Type A |
| Card Read Range | 20mm (0.79") (Typical) |
| Tag Read Range | 15mm (0.59") (Typical) |
| Bluetooth® Wireless Technology | |
| Bluetooth® Read Range | Proximity mode: up to 0.5m (1.6ft) configurable; Action unlock (shake): up to 5m (16.4ft) configurable |
| Bluetooth® Electronic Credential Transmission Technology | Bluetooth® version 5.2 compliant; Proprietary data exchange protocol. AES-128 encrypted; Credentials can be distinguished by unique site code and card number |
| Bluetooth® Wireless Device | Protege Mobile 1.0.x |
| Lock Specification | |
| Lock Type | Grade 2 heavy duty deadbolt lock |
| Deadbolt | Stainless steel. 25.4mm (1") throw |
| Latch Plate | Stainless steel. H x W 57.2 x 28.6mm (2.25 x 1.13") |
| Strike Plate | Stainless steel. Non-handed. |
| Keyway | Schlage C Compatible (SCC) |
| Keying | Keyed Different |
| Door Thickness | 44.45 to 50.8mm (1.75 to 2") standard. Larger thickness by special order |
| Control Hardware Dimensions | |
| Front (H x W x D) | 148.4 x 75.2 x 27.7mm (5.84 x 2.96 x 1.09") |
| Back (H x W x D) | 176.3 x 75.4 x 34mm (6.94 x 2.97 x 1.34") |
| Weights | |
| Net Weight | 1.32kg (2.9lbs) |
| Gross Weight | 1.68kg (3.7lbs) |
| Operating Conditions | |
| Operating Temperature | UL/cUL 0°C to 49°C (32°F to 120°F) |
| Storage Temperature | -10°C to 85°C (14°F to 185°F) |
| Humidity | 0%-93% non-condensing, indoor use only (relative humidity) |
| Mean Time Between Failures (MTBF) | 520,834 hours (calculated using RDF 2000 (UTE C 80-810) Standard) |
Downloads
User Documentation
Supporting Material
Certifications & Warranties
Regulatory Notices
UL/ULC (Underwriters Laboratories)
UL 10B for Safety - Fire Tests of Door Assemblies
UL 10C for Positive Pressure Fire Tests of Door Assemblies (up to 20 minutes when installed in 3 steel fire rated door)
CAN/ULC-S104 for Fire Tests for Door Assemblies
Industry Canada
ICES-003
This is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (A)/NMB-3(A)
Federal Communications Commission (FCC)
FCC Rules and Regulations CFR 47, Part 15, Class B.
This equipment complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
Accessibility
Protege wireless lock hardware is designed to adhere to legal and industry guidelines:
Americans with Disabilities Act (ADA)
International Code Council A117.1 (ICC A117.1)
