Inovonics Wireless
Receiver Module

PRT-IVO-IF

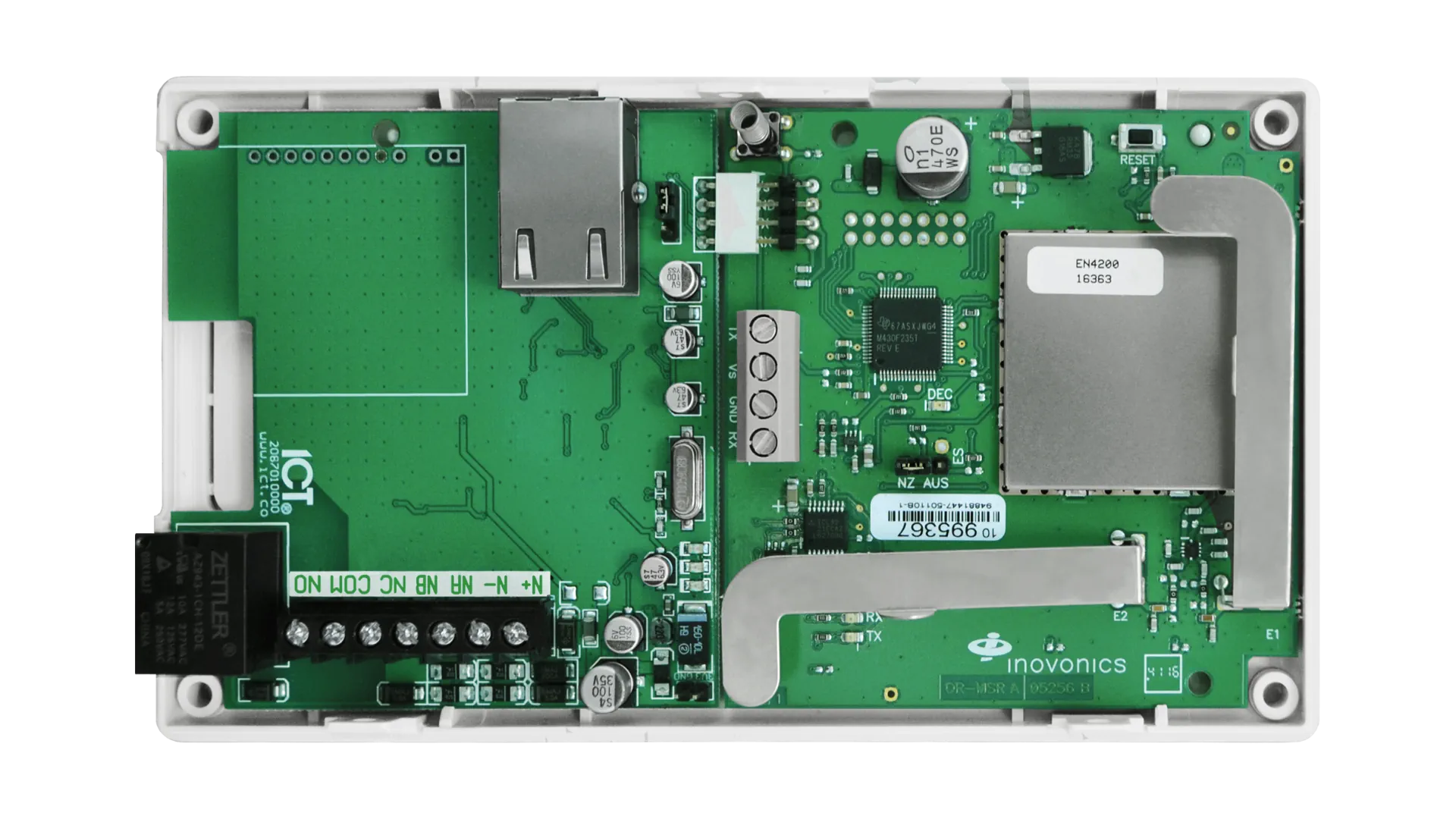

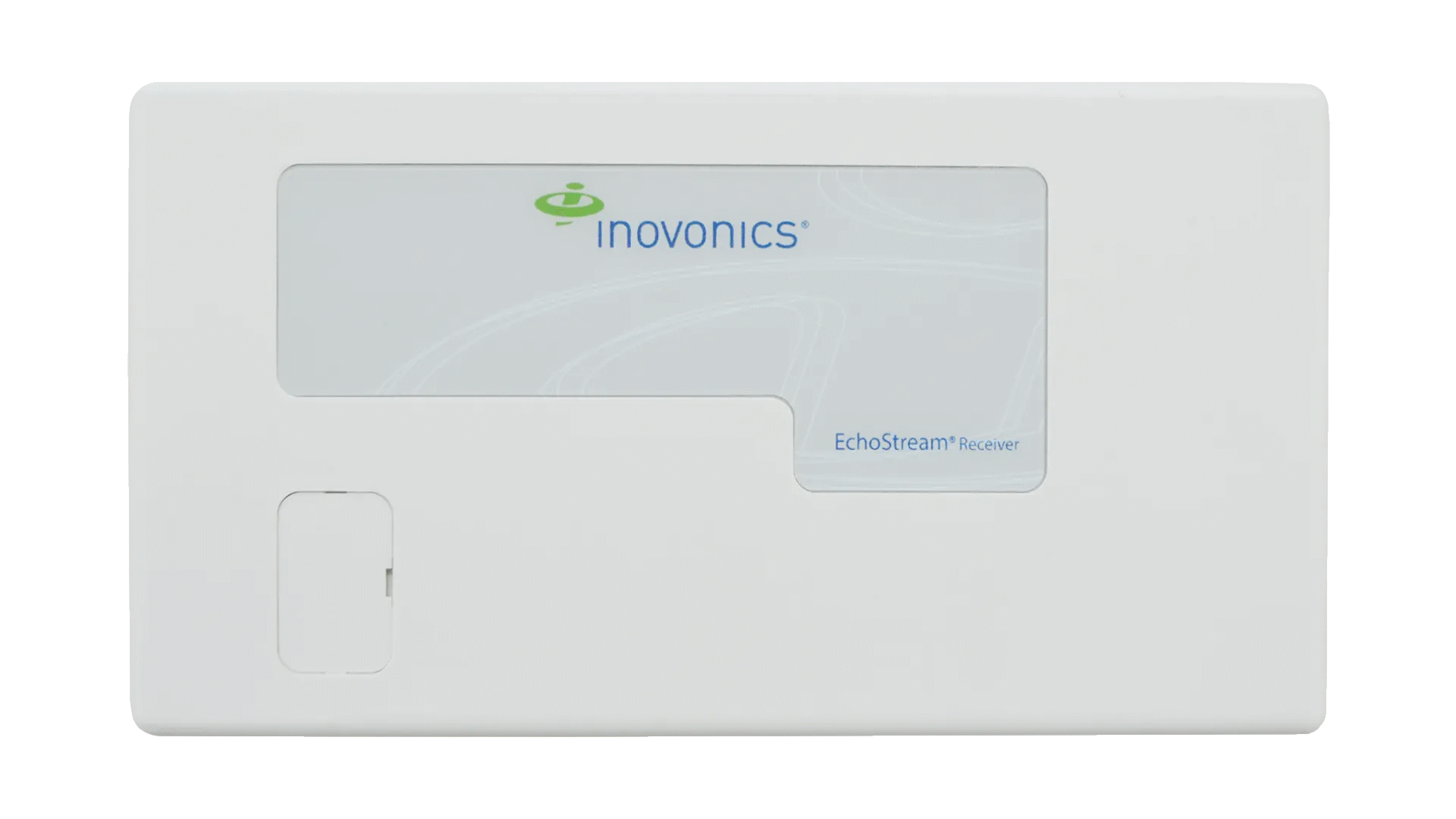

The Inovonics Wireless Receiver Module is designed to facilitate integration between ICT's Protege systems and wireless Inovonics devices. It utilizes the Inovonics EN4200 Echostream receiver which translates incoming Inovonics signals so that they are understood by Protege Controllers.

  • Connect to the Protege controller via RS-485 or Ethernet
  • Convenient Web interface for easy network setup
  • Connects up to 255 Inovonics devices to your Protege system
  • Links Inovonics remotes to Protege users for access control
  • Includes a 7A 250V Max resistive FORM C relay output
  • Protege trouble inputs monitor low battery on Inovonics devices
  • Available in two wireless frequency variants

Features

The Inovonics module has the ability to connect to a Protege controller via RS-485 or Ethernet.

Each module links up to 255 Inovonics devices such as wireless PIRs and remotes to the Protege system.

The module links Inovonics remotes to Protege users so they can access doors controlled by Inovonics devices.

The web interface provides convenient access to configure and manage the module's settings. You can also monitor the status of the interface board and view version information.

The Inovonics module is available in two variants.

PRT-IVO-IF is for use in:

  • The US (902-928 MHz)
  • Australia (915-928 MHz)
  • New Zealand (922-928 MHz)

PRT-IVO-IF-EU is for use in the EU region (868-870 MHz).

The module has one onboard FORM C relay output which can be used to control lighting or signage.

Trouble inputs monitor battery function on connected Inovonics remote devices and generate events to indicate battery level.

Firmware upgrades can be performed via Trivial File Transfer Protocol (TFTP).

Specifications

Ordering Information
PRT-IVO-IF Protege Inovonics Wireless Receiver Module (for use in the US, AU, NZ)
PRT-IVO-IF-EU Protege Inovonics Wireless Receiver Module (for use in the EU region)
Power Supply
Operating Voltage 11-14V DC
Operating Current 160mA @ 13.0V DC (typical)
Communication
RS-485 Module Network
Ethernet 1 10/100Mbps Ethernet Communication Link
Operating Frequencies 902-928 MHz (US)
915-928 MHz (AUS)
922-928 MHz (NZ)
868-870 MHz (EU)
Outputs
Relay Output 1 FORM C Relay - 7A 250V Max resistive
Dimensions
Dimensions (L x W x H) 162.0mm x 91.4mm x 27.9mm (6.38 x 3.60 x 1.10")
Weight 180.2g (6.4oz)
Operating Conditions
Operating Temperature -10° to 55°C (14° to 131°F)
Storage Temperature -10˚ to 85˚C (14˚ to 185˚F)
Humidity 0%-93% non condensing, indoor use only (relative humidity)

Regulatory Notices

This equipment carries the RCM label and complies with EMC and radio communications regulations of the Australian Communications and Media Authority (ACMA) governing the Australian and New Zealand (AS/NZS) communities.

Conforms where applicable to European Union (EU) Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility (EMC) Directive 2014/30/EU, Radio Equipment Directive (RED)2014/53/EU and RoHS Recast (RoHS2) Directive: 2011/65/EU + Amendment Directive (EU) 2015/863.

This equipment complies with the rules, of the Official Journal of the European Union, for governing the Self Declaration of the CE Marking for the European Union as specified in the above directives.

ICES-003

his is a Class A digital device that meets all requirements of the Canadian Interference-Causing Equipment Regulations.

CAN ICES-3 (A)/NMB-3(A)

FCC Rules and Regulations CFR 47, Part 15, Class A.

This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation.
