Protege DIN Rail
16 Zone Input Expander
PRT-ZX16-DIN

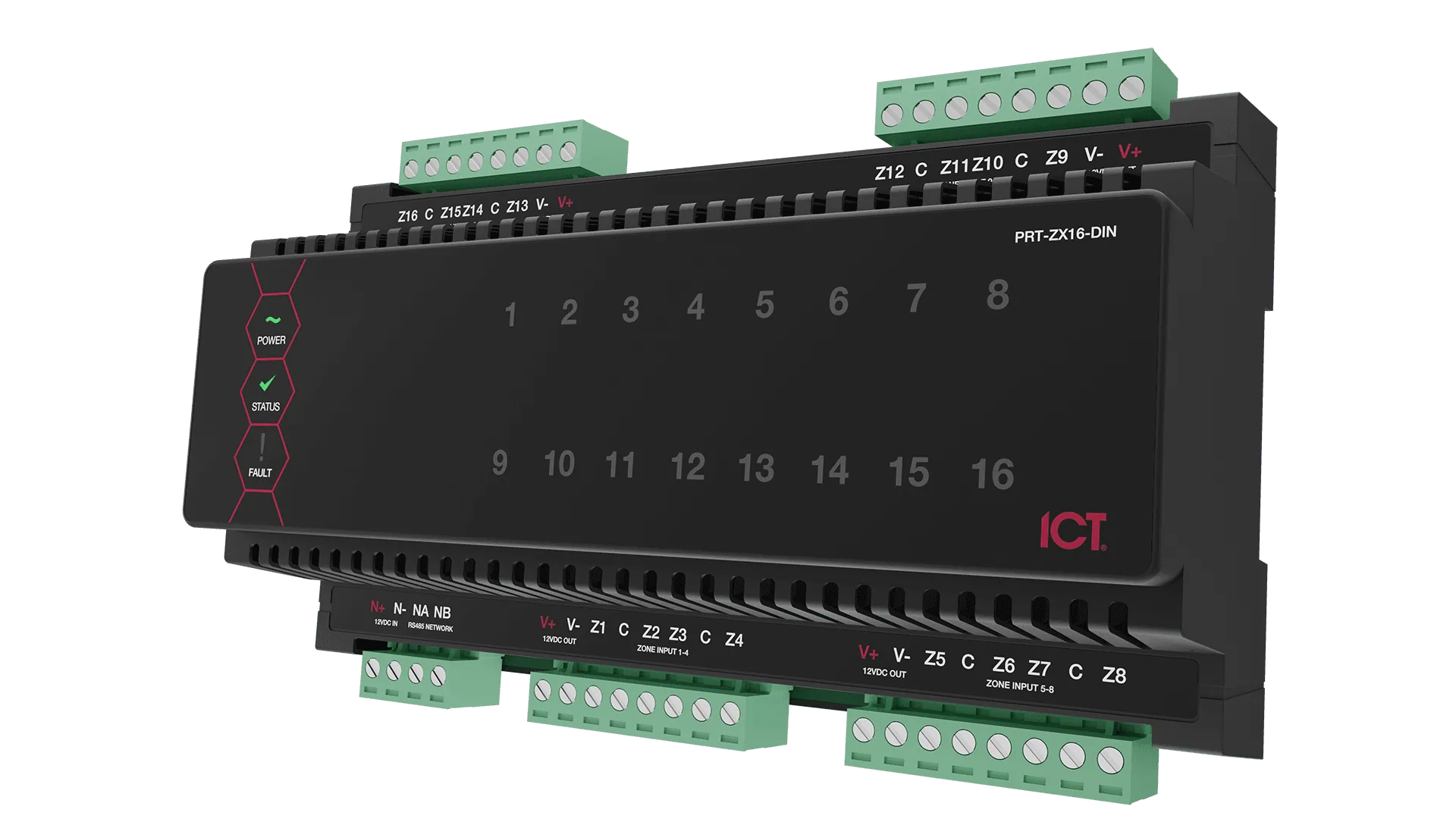

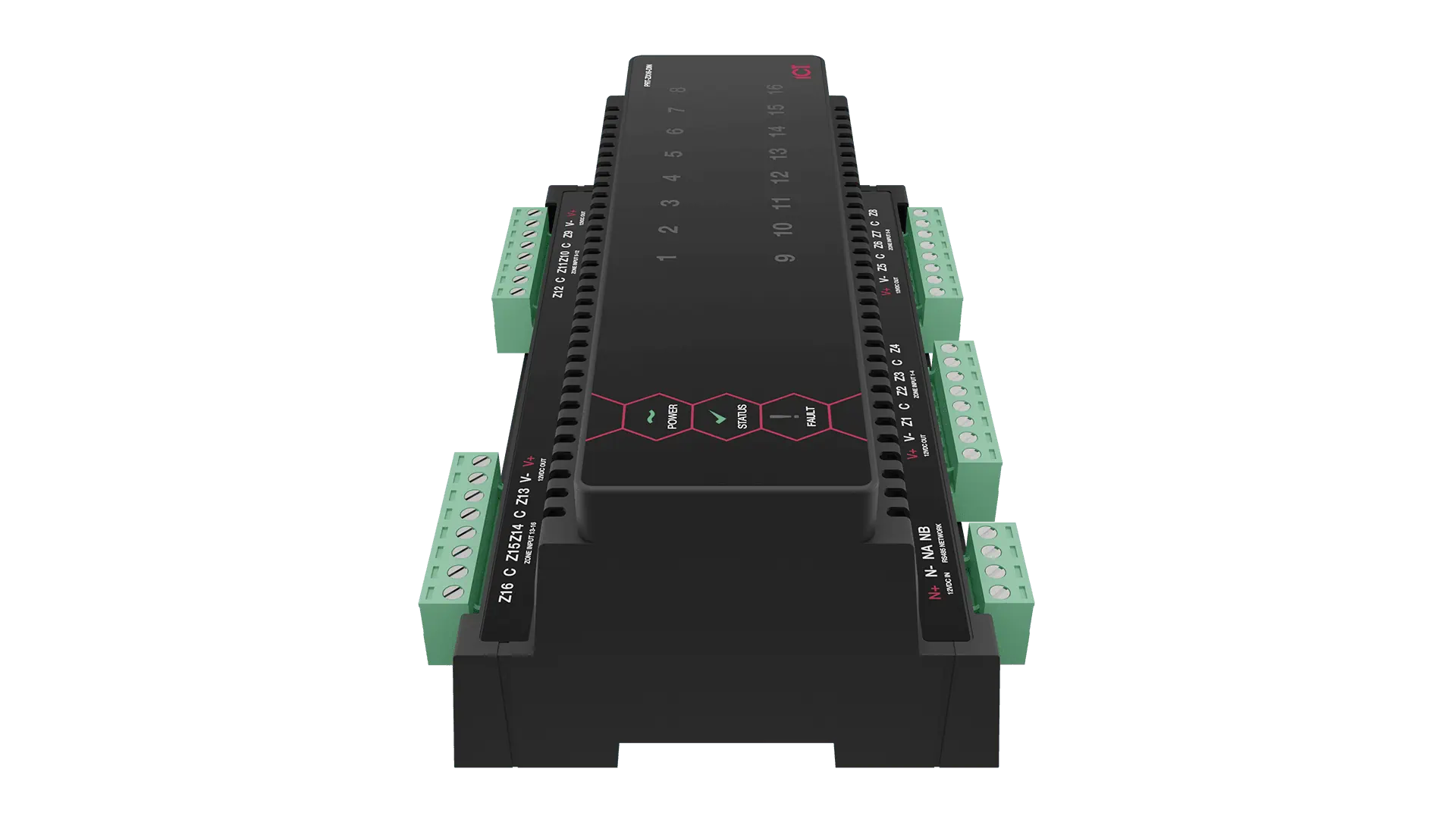

The Protege DIN Rail 16 Input Expander provides the interface of up to 16 inputs for monitoring and automation in the Protege system. With 16 inputs that can be used for extended monitoring functionality, the Input Expander provides extensive hardware advancements that allow flexible input programming and configuration, and is designed for use with industry standard DIN Rail mounting.
- 16 multi purpose inputs
- 4 state input alarm using resistors to provide short, alarm, closed and tamper conditions
- Connect any combination of normally closed or normally open inputs, configurable per input
Features
Connectivity and System Expansion
Extending the Protege system with local inputs and outputs allows convenient, cost-effective expansion with the following additional benefits:
- 16 inputs can be assigned to any 4 areas in the system each being processed using different options or features
- Address configuration is achieved using the address programming feature of the Protege System Controller.
Power Supply
Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost-effective power distribution.
Communication
A single RS-485 communication interface port used for all network communication functions and interconnection to other modules.
LED Indicators
The input expander features comprehensive diagnostic indicators that can aid in diagnosing faults and conditions. LED indicators on the input expander include:
- Status indicator
- Fault indicator
- Power indicator
- Input indicators
Upgradable Firmware
Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated via the Protege interface.
Specifications
| Ordering Information | |
| PRT-ZX16-DIN | Protege DIN Rail 16 Input Expander |
| Power Supply | |
| DC Input Voltage | 11-14VDC |
| DC Output Voltage | 10.83-14.0VDC 0.7A (typical) electronic shutdown at 1.1A |
| Operating Current | 80mA (typical) |
| Total Combined Current* | 3A (max) |
| Low Voltage Cutout | 8.7VDC |
| Low Voltage Restore | 10.5VDC |
| Communication | |
| RS-485 | Module Network |
| Inputs | |
| Inputs | 16 high security monitored inputs (10ms to 1hr input speed programmable) |
| Trouble Inputs | 16 |
| Dimensions | |
| Dimensions (L x W x H) | 156.8 x 90 x 60mm (6.17 x 3.54 x 2.36") |
| Net Weight | 280g (9.9oz) |
| Gross Weight | 350g (12.3oz) |
| Operating Conditions | |
| Operating Temperature | UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F) |
| Storage Temperature | -10° to 85°C (14° to 185°F) |
| Humidity | 0%-93% non condensing, indoor use only (relative humidity) |
| MTBF | 784,316 hours (calculated using RFD 2000 (UTE C 80-810) Standard) |
